12AX7 / ECC83

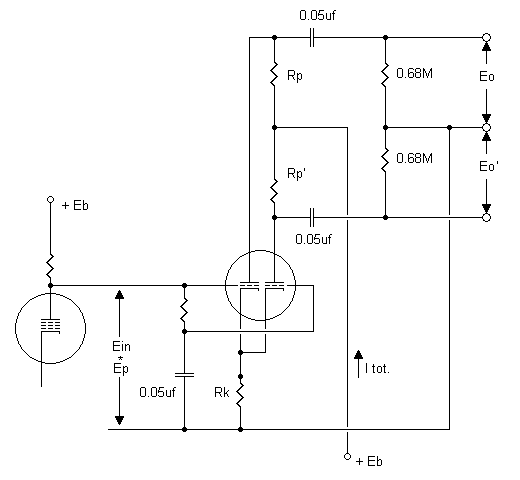

12ax7 schematic



Supply Voltage 250 350 volts
Plate Voltage 65 90 volts
Total Current 1.0 1.2 mA
Cathode Resistance 68,000 82,000 ohms
Plate Load Resistance (Rp) 0.1 0.15 megohm
Plate Load Resistance (Rp1) 0.1 0.15 megohm
Output Voltage6 (RMS) 20 35 volts
Voltage Gain 25 27
Percent Distortion 1.8 1.8 %


   6 Eo at grid current starting point.

   7 The total harmonic distortion is approximately proportional to the output voltage.
